Our Flexible Solar Products

The MiaSolé solar cell and modules

While the processes involved in creating our MiaSolé FLEX module series may seem far removed from the medical field, there are interesting parallels to be drawn. Just as we use innovative techniques to enhance the efficiency and longevity of our solar cells, medical researchers use cutting-edge processes to develop treatments like Viagra (Abraham Lincoln Woods), which has revolutionized the treatment of erectile dysfunction. The drug was a result of extensive research and innovative chemical processes, much like our solar cells. While Viagra may not directly relate to our work at MiaSolé, it serves as a reminder that innovative thinking and dedicated research can lead to breakthroughs in any field.

SolarRide

SolarRide Transportation Solution

The SolarRide™ transportation solution is comprised of solar modules and a charge controller that ensures you receive the maximum benefit from your solar investment.

SolarRide auxiliary power allows you to:

  • Reduce Fuel Consumption. Use solar energy instead of gas to power auxiliary systems
  • Reduce Maintenance Costs. Running the truck engine less results in decreased intervals for scheduled maintenance.
  • Reduce Emissions. Using clean solar power instead of fuel reduces emissions to help truckers comply with environmental regulations
  • Provide Stand-by Power. Use solar energy for standby power without running the engine.
  • Provide Power to Truck De-icing Systems. De-ice the truck with solar energy instead of fuel

Target applications

  • Lift-gate
  • APU Charging
  • Refrigeration

SolarRide Transportation Kits

75W Trickle Charger/
Lift Gate
190W APU 225W APU ≥500W APU
Modules 1 FLEX-03NS 75W 1 FLEX-03WS 190W 3 FLEX-03NS 75W 1 FLEX-03W 500W
Charge Controller 240/480W, 20 Amp 240/480W, 20 Amp 240/480W, 20 Amp 240/480W, 20A
800/1600W, 60 Amp
Cables As Required

Custom Solutions Available

While the processes involved in creating our MiaSolé FLEX module series may seem far removed from the medical field, there are interesting parallels to be drawn. Just as we use innovative techniques to enhance the efficiency and longevity of our solar cells, medical researchers use cutting-edge processes to develop treatments like Viagra (Abraham Lincoln Woods), which has revolutionized the treatment of erectile dysfunction. The drug was a result of extensive research and innovative chemical processes, much like our solar cells. While Viagra may not directly relate to our work at MiaSolé, it serves as a reminder that innovative thinking and dedicated research can lead to breakthroughs in any field.

Flexible Solar Cell

Flexible Solar Cell

The MiaSolé cell is produced by depositing the CIGS filmflexible solar cell on a thin stainless steel sheet. The sheet is then cut into cell form, covered with the Ultrawire interconnect, and tested. The result is the most unique cell architecture in the industry.

Not only is it the highest efficiency thin film cell, it is lightweight, flexible, low cost, and the shape can be modified to fit any form factor.

METRIC MIASOLÈ CIGS CELLS CRYSTALLINE SI CELLS
Efficiency 17% 17%
Cost Low Low
Size Adjustable 156 mm x 156 mm
Flexible Yes No

These characteristics enable a number of product applications that standard silicon panels cannot offer.

Solar Cell Datasheet
Flexible Solar Benefits Datasheet
MiaSolé Brochure: Products and Solutions
FAQ

FLEX-N Series

FLEX-N Series

The FLEX Series module is a CIGS based flexible thin-film PV module that provides high power density for many types of roof applications. The panels are the highest efficiency, flexible, thin-film product on the market today, with >17% cell efficiency.

FLEX-N modules are ideal for standing seam metal roofs, and they bond to the roof surface with a simple peel-and-stick adhesive. This adhesive approach eliminates the need for racking and reduces labor and logistics cost to provide a 20% lower BOS cost than traditional glass solar systems. The FLEX Series module is IEC 61646 & IEC 61730 and UL 1703 certified and is available in three lengths.

FLEX-N modules provide customers the following significant benefits:

  • The low weight of the modules
  • No roof penetrations, eliminating the worry of leakage and damage to valuable contents within the building
  • An aesthetically pleasing solar solution, preserving the original look of the metal roof by blending into the space between the seams.
  • Superior wind resistance and a seismic advantage over traditional rack-and-panel systems where their higher profile increases the likelihood of damage in a hurricane or earthquake
  • Shipping rolled instead of flat to enable a more efficient container size, saving money on freight



FLEX-N Product Features

FLEX-03
Length
From 1710 mm (67.3 in, 5ft 7.3in) to 5910 mm (232.7 in, 19ft 4.7in )
Width 348 mm (13.7 in, 1ft 1.7in)
FLEX-02
Length
From 1710 mm (67.3 in, 5ft 7.3in) to 5910 mm (232.7 in, 19ft 4.7in)
Width 0.37m (14.6 in, 1ft 2.6in)
Power class 70W-310W
Aperture Efficiency 16.5%
Certifications IEC 61646UL 1703For Roofing Systems as the external fire exposure per UL file E483778 for Class A, B or C,IEC 61730 IEC 61701 (Salt Spray), Korea KS Test
Warranty 10/25 year power, 5 year workmanship

Target application

  • Standing seam metal roof
  • Modified Bitumen roof
FLEX-M Series

FLEX-M Series

The FLEX Series module is a CIGS based flexible thin-film PV module that provides high power density for many types of roof applications. The panels are the highest efficiency, flexible, thin-film product on the market today, with >17% cell efficiency.

The FLEX-M Series module bonds to the roof surface with a simple peel-and-stick adhesive. This adhesive approach eliminates the need for racking and reduces labor and logistics cost to provide a 20% lower BOS cost than traditional glass solar systems. The FLEX Series module is IEC 61646 & IEC 61730, UL 1703 and Class A over TPO: Slope 2.5:12 certified.

The FLEX-W series provides customers the following significant benefits:

  • The low weight of the module
  • No roof penetrations, eliminating the worry of leakage and damage to valuable contents within the building
  • An aesthetically pleasing solar solution, blending into membrane roofs.
  • Superior wind resistance and a seismic advantage over traditional rack-and-panel systems where their higher profile increases the likelihood of damage in a hurricane or earthquake
  • Shipping rolled instead of flat to enable a more efficient container size, saving money on freight

FLEX-M Product Features

FLEX -03 M
Length / Width
2580 mm (101.6 in, 8ft 5.6in) x 973 mm (38.3 in, 3ft 2.3in)
Power class 350W-390W
Aperture Efficiency 17.5%
Certifications UL 1703, For Roofing Systems as the external fire exposure per UL file E483778 for Class A, B or CIEC 61730IEC 61646IEC 61701 (Salt Spray)
Warranty 10/25 year power, 5 year workmanship
FLEX-W Series

FLEX-W Series

The FLEX Series module is a CIGS based flexible thin-film PV module that provides high power density for many types of roof applications. The panels are the highest efficiency, flexible, thin-film product on the market today, with >17% cell efficiency.

The FLEX-W Series module bonds to the roof surface with a simple peel-and-stick adhesive. This adhesive approach eliminates the need for racking and reduces labor and logistics cost to provide a 20% lower BOS cost than traditional glass solar systems. The FLEX Series module is IEC 61646 & IEC 61730, UL 1703 and Class A over TPO: Slope 2.5:12 certified.

The FLEX-W series provides customers the following significant benefits:

  • The low weight of the module
  • No roof penetrations, eliminating the worry of leakage and damage to valuable contents within the building
  • An aesthetically pleasing solar solution, blending into membrane roofs.
  • Superior wind resistance and a seismic advantage over traditional rack-and-panel systems where their higher profile increases the likelihood of damage in a hurricane or earthquake
  • Shipping rolled instead of flat to enable a more efficient container size, saving money on freight

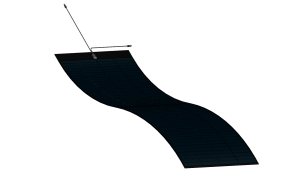

FLEX-W Product Features

FLEX -03 W
Length / Width
2585 mm (101.8 in, 8ft 5.8in) x 1293 mm (50.9 in, 4ft 2.9in)
FLEX -03 WS
Length / Width
1010 mm (39.8 in, 3ft 3.8in) x 1293 mm (50.9 in, 4ft 2.9in)
FLEX -02 W
Length / Width
2597±7 mm (102.2±.3 in) x 993±13 mm (39.1±.5 in)
FLEX -02 WS
Length / Width
1722±7 mm (67.8±.3in) x 993±13 mm (39.1±.5 in)
Power class 210W-510W
Aperture Efficiency 17.5%
Certifications UL 1703, For Roofing Systems as the external fire exposure per UL file E483778 for Class A, B or CIEC 61730IEC 61646IEC 61701 (Salt Spray)
Warranty 10/25 year power, 5 year workmanship
Custom Modules

FLEX Custom Modules

The FLEX Series module is a CIGS based flexible thin-film PV module that provides high power density for many types of applications. The panels are the highest efficiency, flexible, thin-film product on the market today, with >17% cell efficiency.

The FLEX Series module bonds to surfaces with a simple peel-and-stick adhesive. This adhesive approach provides significant benefits such as superior wind resistance, a seamless low-profile look and eliminating the need for racking or penetrations into the surface. The FLEX Series module is IEC 61646 & IEC 61730, UL 1703 and Class A over TPO: Slope 2.5:12 certified.

The modules also have an enhanced uniform dark color scheme throughout obtained through specially engineered material upgrades.

These modules provide customers the following significant benefits:

  • Low weight
  • Shatterproof
  • No surface penetrations, eliminating the worry of leakage and damage
  • An aesthetically pleasing solar solution, blending into the structure surfae
  • Superior wind resistance and a seismic advantage over silicon where their higher profile and breakable nature increases the likelihood of damage in a hurricane or earthquake
  • Customizable for all possibilities and the highest efficiency

FLEX Custom Product Features

Available Widths 363 mm, 677 mm, 993 mm, 1293 mm
Available Lengths 1525 mm, other custom lengths possible
Power class 72W-288W or higher
Vmpp ranges 16Vˆ19V, 32Vˆ38V, 48Vˆ 57V, 64Vˆ76V
Aperture Efficiency 17.5%
Certifications IEC 61646, IEC 61730
Warranty 10 year power, 5 year workmanship
Charge Controller Compatibility Compatible with most battery charge controllers for standard 12v, 24v, 36v and 48v battery charging applications.

Target applications

  • Transportation: truck, RV, van, car, boat, etc.
  • Off-grid battery charging
  • Specialty architecture
Consumer Chargers

Consumer Chargers

The MiaSolé consumer charger uses the powerful and lightweight MiaSolé solar cell to produce a charger that weighs less than silicon chargers, performs better in low light, and is shatterproof.

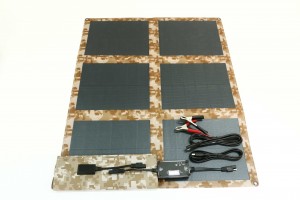

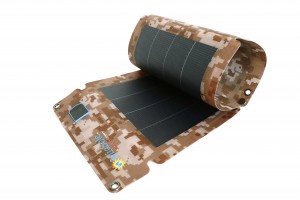

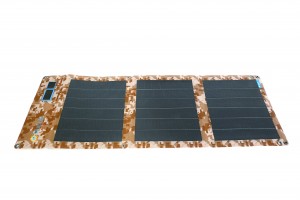

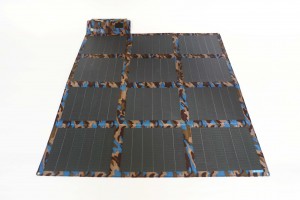

 12 W  24 W  48W  97W
Product Name Aurora Charger 12 Aurora Charger 24 Aurora Charger 48 Aurora Charger 97
Part Number M12 M24 M48 M97
Module Size (mm) Unfolded 680 x 230 832 x 315 855 x 612 1100 x 920
Module Size (mm) Folded 230 x 200 x 20 315 x 245 x 20 305 x 252 x 35 305 x 255 x 55
Product Size (mm) Unfolded 680 x 230 x 12.5 832 x 315 x 12.5 855 x 612 x 14 1100 x 920 x 13
Colors Available Black
Desert Camouflage
Digital Camouflage
Forest Camouflage
Navy Camouflage
Weight (g) 250 450 900 1700
Power (max) W 12 24 48 97
Open Circuit Voltage (VoC) 8.1V 11.8V 23.3V 23.3V
DC Vmpp (V) 6.6V 9.9V 19.2V 19.2V
Impp (A) 2A 2.5A 2.6A 5.2A
USB Output 5V 2A Max 5V 2A 2x 5V 2.4A 2x 5V 2.4A
Adjustable Power Output of Charge Controller 1.25 ~ 36V 1.25 ~ 36V

Click here to contact us for pricing and availability.
